A customer once brought in a performance car with exhaust tips that had looked excellent after a fresh detail. A few months later, the metal was blotched, chalky, and ringed with heat haze. The owner thought the coating had failed without warning. It hadn't. The finish had been asked to survive heat cycling, soot, moisture, and harsh cleaning without the preparation or formulation that those conditions demand.
That's the mistake behind many searches for ceramic coating exhaust tips. An exhaust tip isn't a paint panel. It's a metal surface that repeatedly expands and contracts while carbon, road grime, salt, and water attack the finish. The right decision starts with heat management, flexibility, film thickness, and curing. Appearance comes after those choices.
Why Most Exhaust Tips Disappoint
A tip can look perfect at installation and still fail after a few drives. The common causes are predictable: an unsuitable clear coat, rushed spraying, uneven film thickness, or soot polished into the metal and sealed under the coating. Treating an exhaust component like painted bodywork creates the wrong starting point. Standard automotive ceramic coatings are not considered reliable beyond 500°F, while specialist high-temperature systems are formulated for substantially higher exposure ranges according to technical detailing guidance.
The coating choice is therefore a heat-management decision before it is a color or gloss decision. Film thickness, flexibility, and the cure cycle determine whether the finish can tolerate a metal surface that repeatedly heats, cools, expands, and contracts. A thick layer is not automatically better. Excess material can hold contamination, cure unevenly, and become more vulnerable when the substrate moves.
Exhaust tips occupy the cooler end of the system, so they usually experience less heat than ports, manifolds, or headers. Industry guidance places many tips around 100 to 250°C, while other exhaust guidance notes that tailpipes and tips can run below 200°C in this overview of heat-resistant exhaust finishes. That range makes tips practical coating candidates, not easy ones. Carbon still bakes onto the surface, stainless steel can discolor, and rain, salt, and repeated heat cycles continue attacking the finish.
The problem is usually selection, not bad luck
High-temperature ceramic protection developed through demanding heat-management applications before reaching motorsport and decorative exhaust work. Zircotec's process is described as producing a zirconia layer 0.3 mm thick, with Performance White rated up to 1400°C and colored finishes rated to 900°C as described in this industry guide. Those figures describe a specialized system, not a target specification for every tip.
The same selection logic applies to visible parts such as aftermarket exhaust terminals for bikes. Decorative hardware still faces heat, soot, moisture, and movement. Pick the system for that load first, then choose gloss, satin, or color.
Shop rule: Match the coating to heat, movement, thickness, and cure requirements before choosing its appearance.
Heat, Metal, and the Flexibility Factor
An exhaust tip does not stay dimensionally stable on the road. Steel expands as it heats, contracts as it cools, and repeats that movement through every drive. A coating must tolerate that motion, not just look hard and glossy after application. Thermal cycling, substrate material, flexibility, and application technique all affect cracking. Brittle ceramic layers crack rather than stretch, as explained in this technical discussion of coating flexibility. See the coating flexibility guide for more detail on how movement affects adhesion.
Hardness alone is a poor buying criterion for an exhaust tip. A hard film can resist light scratching while still losing adhesion when the metal shifts underneath it. The better target is a durable surface with enough elasticity to accommodate expansion and contraction.
Coating thickness and cure behavior matter too. A thick, poorly cured layer can hold stress at the surface, while an overly thin layer may offer little protection against soot, moisture, and abrasion. The coating has to match the tip's metal, operating heat, movement, and required cure cycle before appearance becomes the deciding factor.
Titan Coatings describes its elastomer technology as a flexible approach using nanotube and Dark Matter technology. The narrower engineering point is more useful: material design can influence mechanical behavior, but no formulation should be treated as immune to heat-driven movement. Peer-reviewed research on carbon-nanotube-reinforced elastomers reports improved mechanical properties, higher storage modulus, and a lower glass-transition temperature in one HNBR nanocomposite study. Related rubber research also reports improved abrasion resistance when dispersion is handled correctly in the peer-reviewed materials research. Formulation, dispersion, and substrate compatibility still determine the result.
Coating Types vs. Exhaust Tip Demands
| Coating Type | Heat Tolerance | Flexibility | Tip Suitability |
|---|---|---|---|
| Standard paint coating | Limited for exhaust exposure | Varies | Poor choice for repeatedly heated tips |
| Conventional automotive ceramic coating | Not reliably suited beyond 500°F technical guidance | Often rigid | Suitable only when specifically rated for the application |
| High-temperature ceramic system | Commonly engineered around 750 to 2,000°F, depending on formulation | Formulation-dependent | Strong option when preparation and cure are controlled |
| Flexible elastomer-based coating | Verify against the product specification | Designed to accommodate movement | Useful when flexibility is a primary failure concern |
Apex Glass Coating- 50ml is described for glass and windshields, with hydrophobic performance and durability of up to 2 years. That makes it relevant to vehicle glass, not proof that the product belongs on hot exhaust metal.

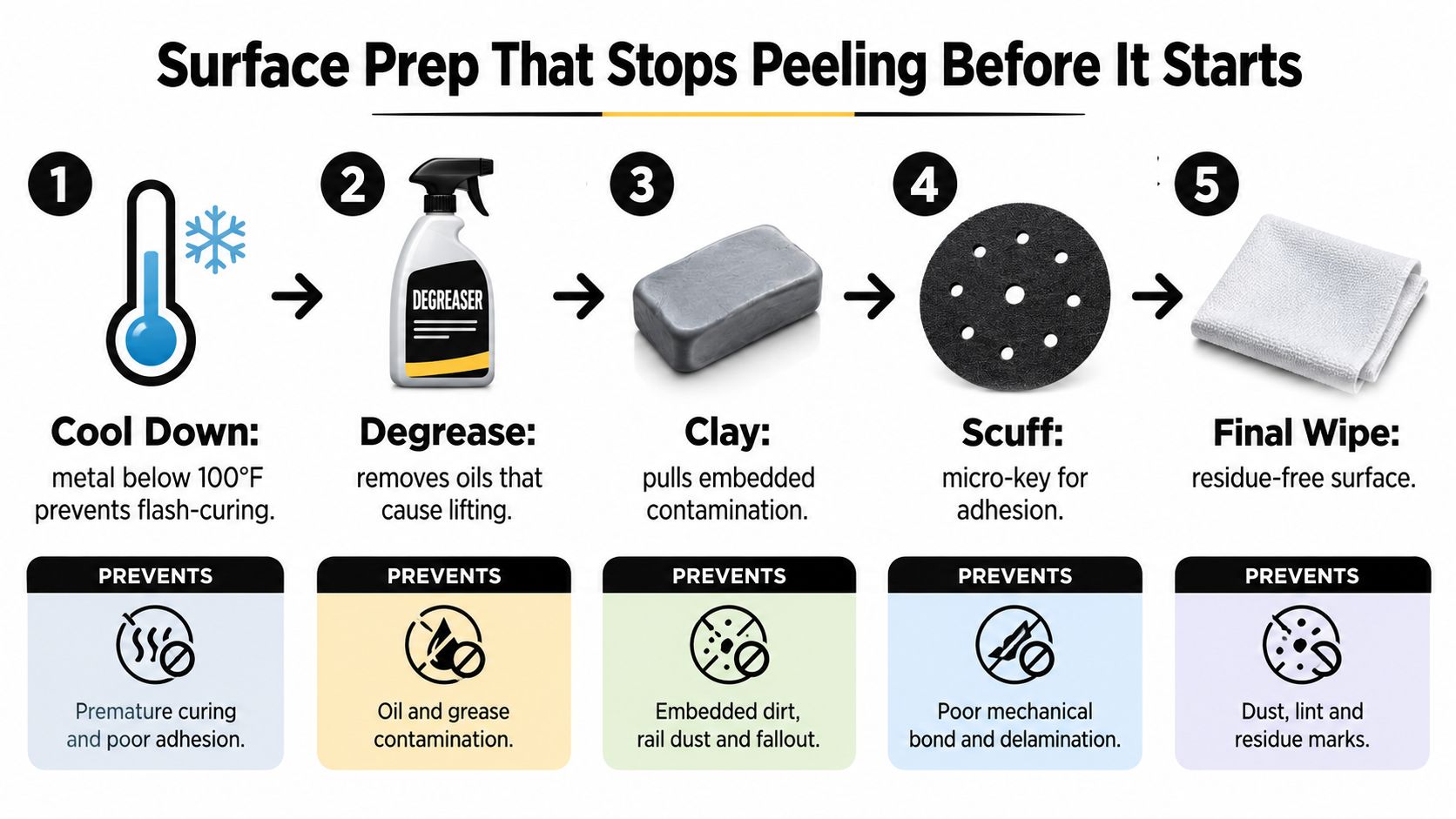

Surface Prep That Stops Peeling Before It Starts
Peeling usually begins before the coating reaches the tip. Oil, soot, oxidation, polish residue, and trapped moisture prevent a reliable bond, while excessive thickness later increases stress during heat cycles. Preparation therefore controls the heat-management system as much as the coating choice. Remove contamination, create a consistent surface key, protect the mounting interfaces, and allow the prepared metal to dry fully before application.
Work only after the tip has cooled completely. A warm surface changes solvent evaporation and can hide uneven coverage. Under a strong work light, inspect the outlet, corners, welds, and rolled edge. Baked carbon often remains where a quick wipe cannot reach.
A preparation sequence that earns adhesion
Degrease thoroughly. Use a cleaner that cuts oil and carbon, then follow with a residue-free panel wipe. Any film left behind can cause fisheyes, lifting, or blisters once the tip heats.
Remove soot and oxidation. Cleaning alone can leave metal that looks bright but remains contaminated. Mechanical abrasion or blasting provides the controlled key needed for adhesion. Bare, evenly abraded metal gives a high-temperature system a more predictable foundation than a glossy layer of unknown polish or prior coating. Follow this coating surface preparation guidance when selecting the cleaning and abrasion sequence.
Treat the edges and interfaces carefully. Mask slip joints, flange faces, clamp areas, and any surface that must fit tightly. Coating those areas can interfere with installation and cause chipping when the tip is refitted.
Handle with clean gloves. Skin oils can compromise the final wipe. Once the surface is clean, keep fingers, shop towels, and dirty tools away from the metal.
Inspect before coating. Shine a flashlight across the surface at a low angle. This reveals residue, missed areas, scratches, and uneven abrasion that overhead lighting can hide.
Preparation also determines whether the later cure cycle works evenly. A clean, uniform surface helps the film bond through heat cycling, while contamination creates isolated failure points that spread as the metal expands and contracts.
OMNIGUARD – Waterless Wash is described for wipe-downs, water-mark removal, UV protection, self-cleaning, and oxidation resistance through HYPERBEAD™ particles. Keep that type of product for maintenance. It cannot replace the abrasive preparation required before coating.

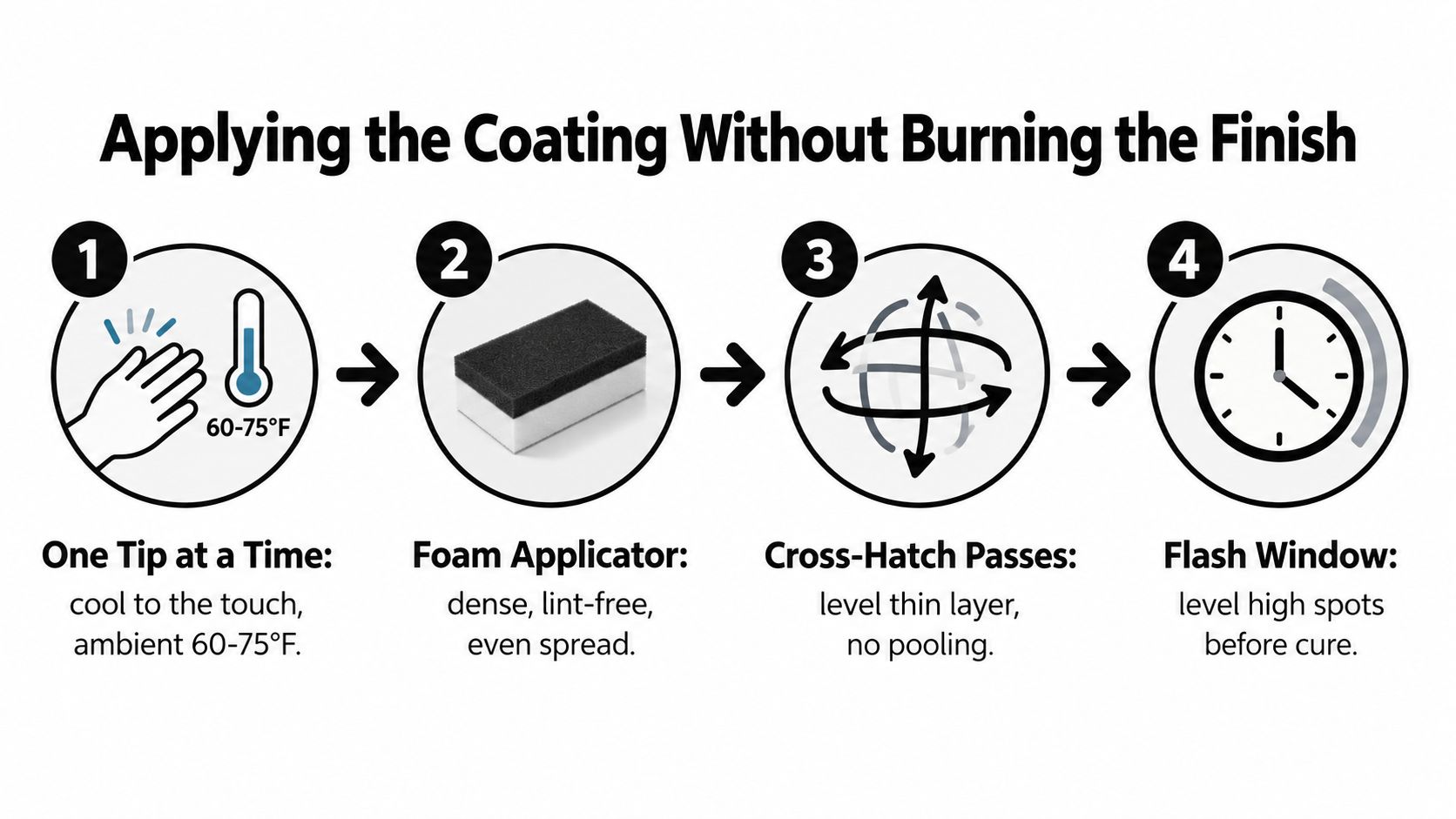

Applying the Coating Without Burning the Finish
Application should feel controlled, not rushed. Work on one tip at a time and use a product whose technical documentation specifically covers the heat exposure of the component. A coating can look smooth in the bay and still fail if the film is too thick, uneven, or incompatible with the substrate.
Use a dense, lint-free applicator and spread a thin, even film across the visible metal. Avoid flooding the surface. High-temperature coating guidance describes thin, controlled layers as important for adhesion and cure, while engineering guidance warns that thicker films create more internal stress and are more prone to peeling in this explanation of exhaust coating thickness.
Film control matters more than shine
Lay the coating in one direction, allow the product to flash according to its instructions, then level it with a cross-hatch pass. The second direction exposes missed areas and helps prevent heavy ridges at the edges. Don't chase maximum gloss by adding product. On a hot component, a heavy film can cure unevenly and hold more internal stress.
Watch the rolled edge of a slash-cut tip. Cover the visible face and the outer edge, but don't blindly coat the inside lip where exhaust flow, soot, and installation contact can damage the film. Mask any area that must slide over a pipe or sit beneath a clamp.
A coating that looks thick and impressive in the bay may be the coating most likely to show heat staining first.
The first tip should be treated as a test panel, especially when the product or substrate is unfamiliar. Use the least visible or coolest tip to verify wetting, flash behavior, wipe timing, and final appearance. If the film streaks, pools, or refuses to level, correct the process before repeating the error on every outlet.
Follow the manufacturer's recommended ceramic coating application temperature. Ambient conditions, surface temperature, humidity, and product chemistry all affect flash and cure. Don't transfer body-panel coating habits to exhaust metal without checking the product's intended use.

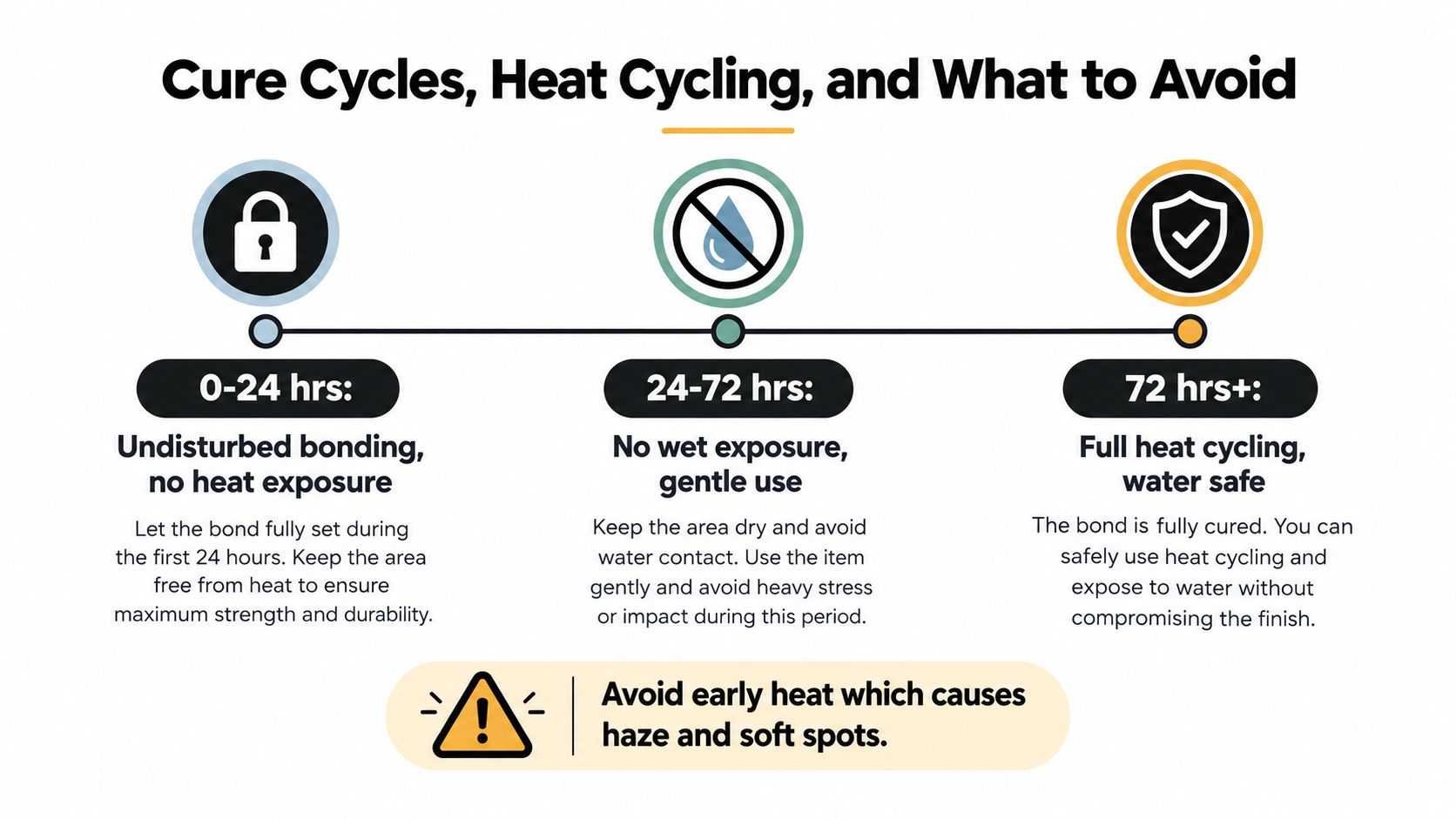

Cure Cycles, Heat Cycling, and What to Avoid
A tip can look perfect at installation and still fail on its first drive. The surface may feel dry while the bond underneath remains vulnerable. Cure is a heat-management stage, not a waiting period to ignore. The coating's thickness, flexibility, and formulation determine whether it can move with the metal as temperatures rise and fall.
High-temperature ceramic systems may call for oven curing or a controlled initial heat cycle. Follow the product's specified method, because a generic heat recipe can damage an otherwise sound application.
A common shop-floor failure starts with an early drive. One outlet develops a cloudy ring while another stays clear. Uneven heat can drive solvents out too quickly, soften an incomplete film, or expose differences between the hottest and coolest sections. The metal is not automatically at fault.
Give the coating time before testing it
Keep the vehicle dry and protected from dust during the manufacturer's stated initial cure period. Do not use an improvised heat source, add solvent to a fresh film, or raise engine speed sharply while the metal is cold. Those shortcuts can create uneven curing before the coating has enough strength to handle thermal movement.
Use a gradual first heat cycle. Let the film and substrate move together instead of forcing a sudden temperature change through an incompletely cured layer. The exact cure schedule belongs to the product data sheet, not a generic internet recipe. For typical timelines, see how long ceramic coating takes to cure.
Treat the first drive as part of the installation. Keep engine load modest, let the tips cool fully, then inspect for haze, bubbling, edge lift, or discoloration. A properly prepared and cured coating should not need aggressive polishing to recover its appearance.
Titan's ULTRA Ceramic Spray is described as Ultra 4.0, a concentrated, water-based flexible membrane sealant for paint systems, wraps, PPF, glass, wheels, plastic trim, and household or personal items. That description does not establish it as an exhaust-tip coating. Confirm heat compatibility before using it on an exhaust component.
Maintenance That Keeps Tips Looking New
A ceramic coating makes soot easier to remove, but it does not make an exhaust tip maintenance-free. Road salt, iron fallout, water spotting, scratches, and installation marks can still damage the finish. Thermal durability also has limits: mechanical contact from road debris, clamps, tools, or poor handling can leave defects, as noted in this ceramic and powder-coating comparison.
The routine can stay simple. See our ceramic coat maintenance guide for wash intervals and inspection tips:
- Cool the metal first. Scrubbing a hot tip or trapping cleaner against heat-soaked metal can mark the surface.
- Use a pH-neutral wash. A dedicated tip mitt lifts contamination without spreading abrasive grit.
- Rinse thoroughly. Do not let road salt, cleaner, or chemical residue dry onto the film.
- Dry with clean microfiber. Dirty shop towels can drag grit across the finish.
- Inspect the edges. Check for chips, clamp contact, and early lifting before those defects spread.
- Control dwell time. Strong degreasers and acidic presoaks can shorten the coating's service life.
Wash frequency should follow the car's use. A daily-driven vehicle exposed to rain, salt, and soot needs more frequent attention than a weekend car stored indoors. Coated tips can remain visibly clean longer between washes than uncoated tips. One independent source reports intervals of three to four times longer, depending on the system and conditions in this guidance from Zircotec. The practical gain is usually slower carbon buildup and discoloration, not a dramatic change in exhaust temperature.
Do not wrap a ceramic-coated exhaust without checking the coating manufacturer's guidance. Wrapping can trap moisture, raise corrosion risk, and affect warranty coverage. Gloves during installation, gentle washing, and regular inspection protect the finish better than layering products over neglected contamination.
The Long Game for Coated Exhaust Tips
A coated exhaust tip lasts when the coating is chosen and managed as a heat system, not treated like paint. Start with the operating conditions. Tips usually run cooler than headers and manifolds, but they still cycle through heating and cooling while exposed to soot, water, salt, and road grime. Select a product engineered for exhaust use, particularly on a hard-driven vehicle or a finish that is always visible.
Flexibility must match the metal. Steel is reported to expand at about 12 ppm/°C, while rigid ceramic coatings can fall within a broader 30 to 100 ppm/°C range, creating stress during repeated heating and cooling in this engineering discussion. Titan's elastomer coating concept combines a hard surface with flexibility. That approach may reduce stress, but it does not excuse poor preparation, excessive film thickness, or an incomplete cure.
The bay-side inspection list
Before applying a coating, verify:
- Substrate: Is the metal free from soot, oil, oxidation, and loose old finish?
- Temperature: Has the tip cooled enough for safe, consistent preparation?
- Compatibility: Does the technical documentation cover exhaust exposure?
- Movement: Can the film accommodate expansion instead of cracking like a brittle shell?
- Interfaces: Are slip joints, clamp zones, and flange faces clear of unwanted buildup?
- Cure: Do you have the required oven or controlled heat-cycle process?
- Aftercare: Does the owner understand gentle washing and routine inspection?
Thickness, flexibility, and cure cycle work together. A heavy coat cannot rescue weak adhesion. A polished surface can still carry oil or embedded contamination. A quick flash indicates evaporation, not final cure. A hard finish is not automatically a durable finish.
Keep the coating as a maintained protective layer. Inspect the tips after they cool, wash with suitable soap, dry with clean microfiber, and avoid chemicals that attack the film. If the owner drives through rain, salt, or heavy soot, shorten the inspection interval rather than waiting for visible peeling.
APEX NANO – Titan Coatings offers flexible coating technologies for vehicle surfaces, including polymer and nanomaterial protection that can be assessed for exhaust-tip care. Visit APEX NANO – Titan Coatings to review the product range and match a coating to the surface, heat exposure, preparation process, and maintenance routine.
