What Is UV Coating and Why Detailers Trust Elastomer Tech

A customer once pointed at a faded hood in my detailing bay and asked, “Can you put a UV coating on my car?” He wasn't asking for a chemistry lesson. He wanted to know whether the next hot summer, cold night, road salt, and bug impact would leave his paint looking the same.

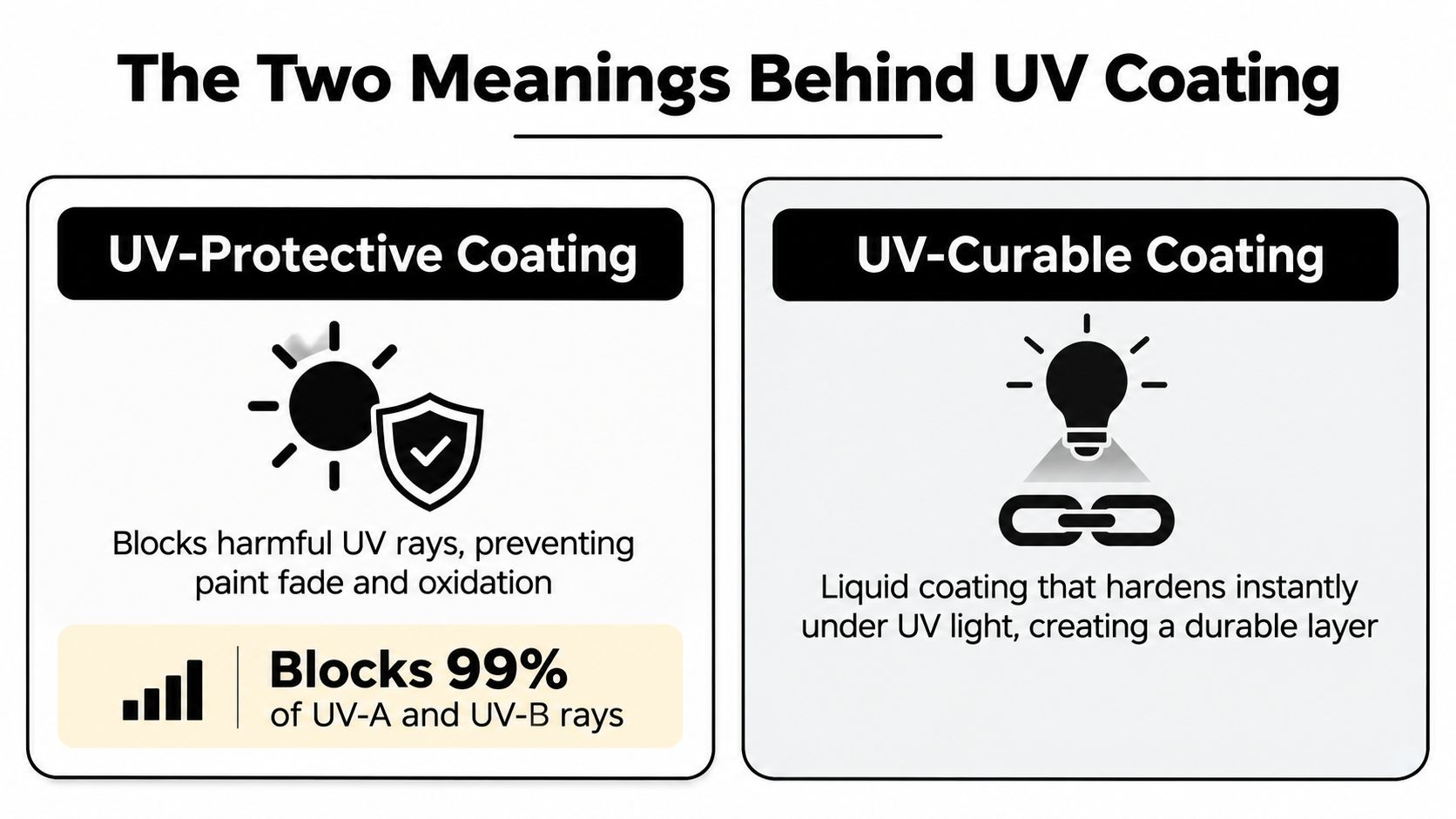

The Two Meanings Behind UV Coating

That question exposes the confusion around what is UV coating. In automotive conversations, the phrase can describe two different ideas.

The first is a UV-curable coating, a liquid finish that hardens after exposure to ultraviolet energy. The second is a UV-protective coating, a cured film designed to help shield paint or another surface from ultraviolet radiation, fading, and oxidation. One describes how the coating cures. The other describes what protection the coating provides.

The terms overlap in marketing, so buyers can easily assume that every product called a UV coating needs a UV lamp. That isn't true. A product may cure through a chemical reaction with moisture and ambient conditions while still offering UV resistance after installation.

Why the distinction matters in a detailing bay

If you're working on a daily driver outside a client's home, you need to know whether the product requires controlled UV exposure, a lamp, a specific cure window, or a clean, dry surface. A garage-kept show car may justify a different finish, especially when gloss, tactile feel, and maximum surface hardness matter more than fast mobile installation.

UV technology has a long industrial history. One industry summary traces early commercial development to specialty uses in electronics and printing during the 1960s, broader commercial traction during the 1980s, and faster expansion in the 2000s as process efficiency and environmental regulation gained importance. The same source describes applications in printing, wood finishing, medical devices, consumer goods, and electronics, not just automotive surfaces. (UV coating history and applications)

The technology also appears in flooring and other hard-surface finishes, which makes this resource on UV-cured floor finish pros and cons useful for understanding how the same basic idea behaves outside a vehicle.

For automotive buyers, the practical question is simple: Are you buying a coating that cures with UV light, a coating that protects against UV exposure, or a product designed to do both? Titan's information on UV-resistant epoxy coating offers another example of why the protection meaning can apply to products that don't require a curing lamp.

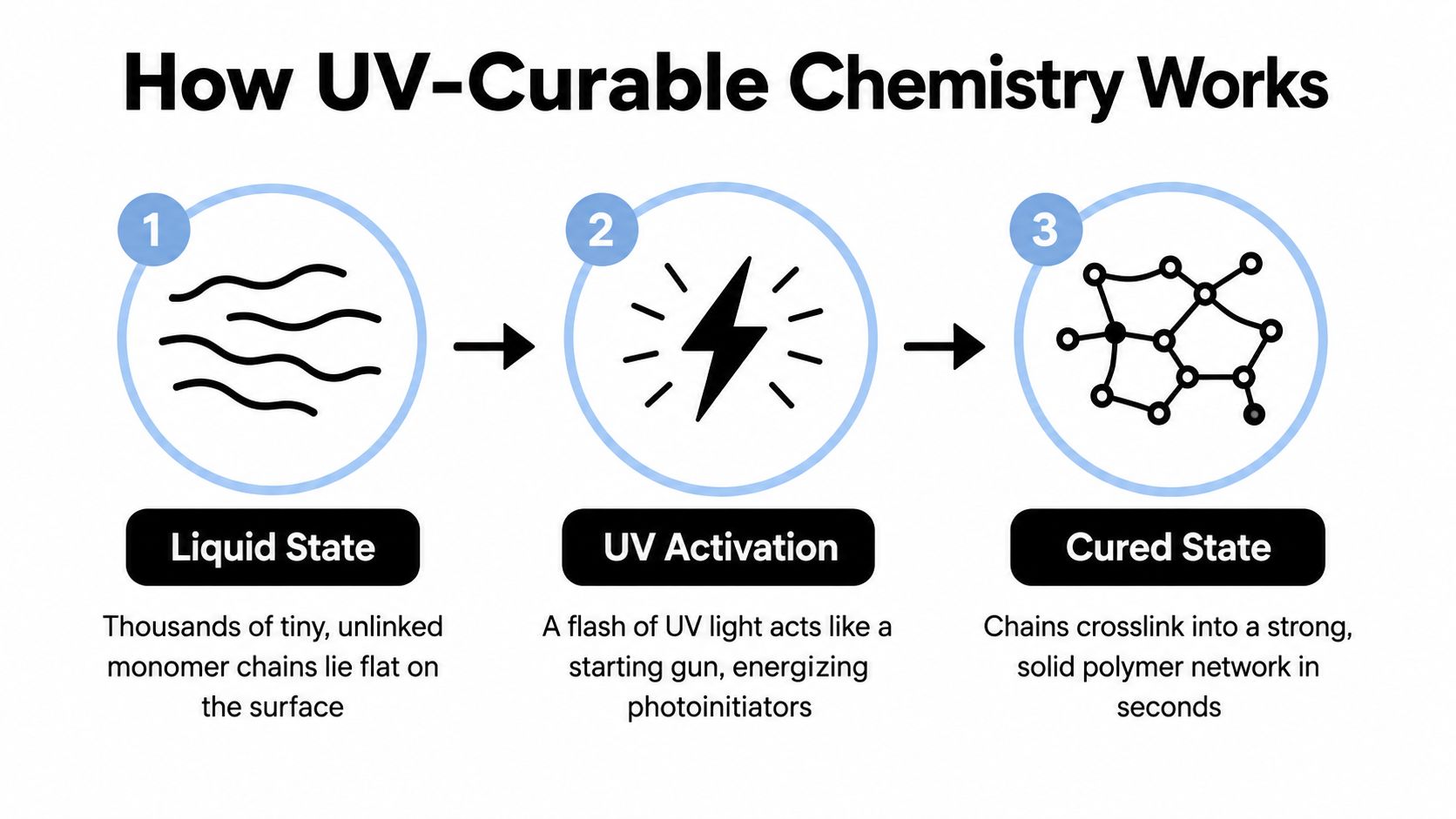

How UV-Curable Chemistry Actually Works

During a coffee break, I explain UV-curable chemistry with a chain reaction. Before curing, the liquid contains reactive building blocks that can move across the surface. A flash of ultraviolet energy activates the photoinitiator, and those building blocks begin linking together until the liquid becomes a solid polymer network.

The main ingredients have different jobs. Oligomers provide the larger structural backbone. Reactive diluents, sometimes described as monomers, adjust flow and help become part of the final film. Photoinitiators absorb the ultraviolet energy and start the crosslinking reaction, while additives influence appearance, leveling, adhesion, and other performance characteristics.

A finish that stays on the surface

UV-cured coatings are commonly formulated as 100% reactive solids. The oligomers, reactive diluents, photoinitiators, and additives crosslink under ultraviolet exposure, so the applied film remains on the substrate rather than losing thickness through solvent evaporation. The cured network forms quickly, which suits low-temperature processing and rapid production lines. (UV-curing chemistry and processing)

Industry references describe a working wavelength range of about 200 to 400 nanometers for UV coating systems, and reported processing rates reach about 2 m/s in suitable applications. The reaction can use free-radical or cationic curing chemistry, depending on the formulation. Those details matter to manufacturers, but the shop-level lesson is easier: the lamp, distance, coating thickness, and exposure pattern must match the product.

A UV-protective coating works differently. Its job is to absorb, reflect, or otherwise reduce the effect of damaging ultraviolet radiation through selected additives and particles. It may cure without a lamp, yet still help preserve paint appearance after installation.

That's why I never tell a customer that “UV coating” automatically means instant lamp curing. I ask what they need the product to do, then match the chemistry to the surface, climate, workflow, and maintenance habits.

Hardness Versus Flexibility in Modern Coatings

A hard coating feels reassuring when you're holding the bottle. Marketing often focuses on pencil-hardness ratings, but a vehicle panel doesn't sit still like a test coupon. It expands, contracts, vibrates, twists, and absorbs impacts from grit, road debris, and insects.

Traditional hard coatings can provide strong resistance to surface wear when the formulation and cure are optimized. Independent testing found that higher lamp power, reported at 90 W/cm, combined with multiple thinner layers, produced the strongest scratch, impact, and abrasion performance in the tested system. The same study reported that approximately 50 g/m² of basecoat plus 10 g/m² of topcoat produced an abrasion-resistant board. (Industrial UV coating durability study)

Where a rigid film can struggle

A rigid coating resembles a thin glass sheet stretched across a flexible surface. It may resist a sharp mark, but repeated movement underneath can create stress. The problem becomes more visible around hood edges, roof panels, body lines, plastic trim, and other areas that experience movement or severe temperature changes.

Titan presents its elastomer coating technology as a different approach. The company says it introduced elastomer coatings using nano tubes technology and Dark Matter technology, with a membrane designed to combine glass-like hardness and flexibility. In practical terms, that means the coating is intended to move with the paint instead of fighting every expansion and contraction cycle.

Shop perspective: Hardness helps resist marks. Flexibility helps the film remain attached when the panel beneath it moves.

Titan's elastomer concept is especially relevant for detailers who work on daily drivers. Bugs can strike the front of a vehicle, grit can impact the lower panels, and a hood can move through harsh temperature changes. A flexible membrane won't make a vehicle immune to damage, and it shouldn't be sold as magic, but flexibility can address a weakness that a purely rigid film can't solve.

The broader coating literature describes hardness and flexibility as a tradeoff. Higher crosslinking density generally produces a harder surface, while excessive rigidity can reduce flexibility and increase brittleness. Polyurethane chemistry can be engineered into flexible and elastomeric UV-cured systems, although many conventional UV coatings remain hard with limited flexibility. (RadTech paper on UV-cured flexibility)

Titan's discussion of coating flexibility is useful for detailers comparing a hard surface finish with a membrane designed to accommodate movement.

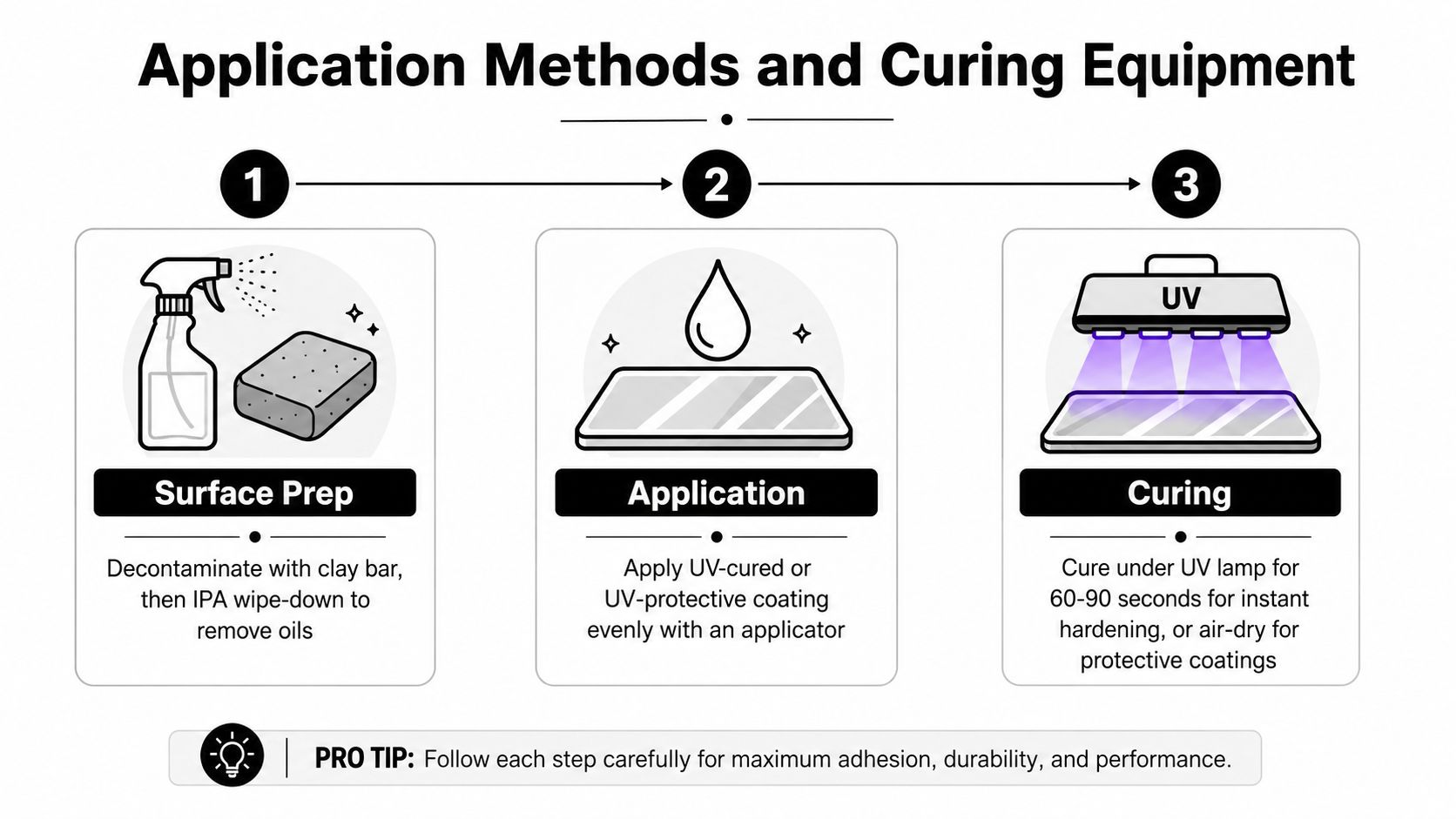

Application Methods and Curing Equipment Explained

A vehicle can leave the bay looking ready for coating, yet a trace of polishing oil may later cause uneven bonding. I begin with decontamination, use a clay bar where needed, then wipe the paint with IPA to remove residue. Before the applicator touches the panel, the surface should feel clean and uniform.

For a UV-curable resin, the installer spreads an even film, controls its working time, and exposes it to the specified ultraviolet energy. Lamp output, wavelength, distance, sweep pattern, and coating thickness all affect whether the film cures consistently.

Two workflows, two kinds of equipment

A UV-curable process may require a UV LED lamp or another compatible curing unit. Follow the product instructions instead of judging by brightness. A lamp can look powerful without delivering the required energy to the coating. Keep it moving in a consistent pattern, and overlap passes so untreated edges do not remain.

UV-protective ceramic coatings cure through a chemical reaction rather than UV exposure. Titan Alpha Quartz is described as a chemically curing product that does not depend on a UV lamp, which suits many mobile detailers and DIY users. Shade, clean air, controlled application, and the correct settling time still matter.

For a mobile operator refreshing protection between jobs, Ultra Ceramic Spray provides a spray-on application route without specialized curing equipment. It does not remove the need for preparation or careful wipe-off. Those steps still determine whether the finished surface looks even.

Outdoor work adds practical complications. Direct sunlight can make defects harder to see, wind can carry dust onto the panel during the flash period, and heat can shorten working time. A canopy, clean towels, small work sections, and a panel-by-panel inspection help keep the process controlled.

Application rule: If the coating looks uneven before cure, curing will not hide the mistake. It usually locks the mistake in place.

Water behavior can provide a useful visual check after curing, but it cannot replace the manufacturer's instructions or a proper inspection. Tactile feedback may reveal residue, while a slick surface alone does not prove complete chemical conversion. For broader context on coating and finishing equipment, this additive painting solutions overview describes how application systems fit into controlled surface-finishing work.

Why Temperature Resilience Matters More Than Hardness

A car panel can feel hot after an afternoon in direct sun, then contract as the night cools. Body lines, plastic trim, and aluminum panels all move through those changes. The coating must follow that movement while holding adhesion and preserving a clean surface.

UV curing alone does not determine performance. Resin chemistry, network structure, and the coating's glass transition temperature, or Tg, influence whether the film stays flexible in service. A coating designed for freezing-to-hot cycles needs molecular structure and a Tg suited to those conditions. See this overview of coating flexibility and Tg for the connection between formulation and movement.

Hardness is only one part of the shop-floor result. A very hard film may resist a light scratch, while a slightly softer film with real elasticity may better tolerate panel movement. Stress around body lines, trim, and metal edges can appear as cracking, lifting, or a spider-web pattern.

Elasticity changes the design question

Titan's elastomer membrane approach treats the coating like a rubber membrane over a surface that moves, rather than a glass sheet over a rigid panel. The stated advantage is maintaining hardness while flexing with the substrate through severe temperature transitions.

Formulation, preparation, film thickness, adhesion, cure, chemical exposure, and maintenance still matter. A peer-reviewed study shows the tradeoff clearly: a UV-curable coating with 5% nano-SiO₂ reached 5H hardness, while adhesion fell to 2B and flexibility to 1. The study's best overall balance occurred at 3% additive, with 4H hardness, 4B adhesion, and a flexibility rating of 5. (Peer-reviewed nano-SiO₂ coating study)

For a detailer, that balance says more than one headline rating. Ask how the film will behave on the specific substrate, in the local climate, and under the customer's driving conditions. Titan's heat-resistant coating information belongs in that evaluation because thermal resilience deserves attention alongside gloss and water behavior.

Maintenance Longevity and Industry Testing Standards

A coating's service life depends on what happens after installation. A careful owner who washes with a pH-neutral product and avoids aggressive equipment gives the film a better chance than an owner who uses abrasive compounds or automatic brushes.

A practical routine starts with regular pH-neutral washing, followed by periodic decontamination when the surface feels rough. A product such as Ultra Ceramic Spray can serve as a topper or refresh product when its instructions and compatibility support that use. The exact schedule should reflect contamination, climate, storage, and driving frequency rather than a calendar promise that ignores the vehicle.

Longevity needs honest boundaries

Professional-grade coatings are often discussed in the range of two to five years, while spray sealants are commonly positioned around six to twelve months. Those are product-category expectations, not guarantees, and they should be supported by the manufacturer's documentation and maintenance requirements.

Automatic car washes, abrasive chemicals, neglected contamination, and repeated mechanical contact can accelerate degradation. Coastal salt air and intense sun can also increase the demands placed on a coating, but no coating eliminates the need for cleaning.

Testing gives buyers a way to examine claims without relying only on gloss demonstrations. Useful standards include:

Read the test, not just the label

A credible evaluation should identify the substrate, preparation, film build, cure conditions, and test method. A hardness result on one panel doesn't automatically predict flexibility on plastic trim, adhesion on aluminum, or weathering on a daily driver.

Titan's coating testing information belongs in that kind of review. Detailers should ask for the test conditions and then compare them with the job in front of them. Maintenance discipline, realistic service expectations, and relevant testing together create a much safer basis for recommending a product.

Choosing the Right UV Coating for Your Needs

A daily driver arrives with stone chips along the hood, plastic trim that flexes in the sun, and glass covered in water spots. The right coating depends on the vehicle, the work environment, and the person applying it. A professional may value a durable elastomer membrane and controlled preparation. A weekend DIY user may need simple application and easy refresh options.

For professional detailing, Titan Alpha Quartz is positioned as an elastomer coating for daily drivers and show cars. Its flexible behavior helps the film accommodate movement that can challenge a rigid finish. For DIY and mobile work, a spray product may be more practical when specialized UV-curing equipment is unavailable.

Titan also offers Apex Glass Ceramic Coatings for glass and windshield surfaces. Applied to clean glass, the coating can improve water behavior and help maintain visibility during rain. The process is straightforward, but preparation still determines the result. Remove residue completely, then apply an even layer.

Match the product to the job

A vehicle exposed to intense sun, temperature changes, coastal salt air, highway mileage, or outdoor storage places different demands on a coating. An elastomer system suits situations where panel movement and impact exposure matter. A spray product can fit a quick maintenance application or a mobile service with limited equipment.

Before purchasing, check surface preparation, cure requirements, layering compatibility, maintenance instructions, and warranty terms. Hardness alone does not settle the decision. A coating that moves with the paint through seasonal changes may serve a working vehicle better than a harder film that struggles under repeated stress.

Titan's elastomer coating technology gives detailers a practical way to assess the hardness-versus-flexibility tradeoff. Match the chemistry, installation method, and upkeep to the vehicle and the owner's routine.
